    Exchanged opinions with German bear last night, he would like to have Ysarex 4.7/127mm lens a lens shade, but since the lens does not have filter ring, so asked me if I know any shade available for it.
    I remember reading a post, a Chinese lives in Canada ever glued a step-up ring on lens, then he can use filters/shade in front of Ysarex.
    I think this is not bad idea, a little more improvement makes Byron better, I can do this as basic conversion, so I went to find the ring this afternoon.

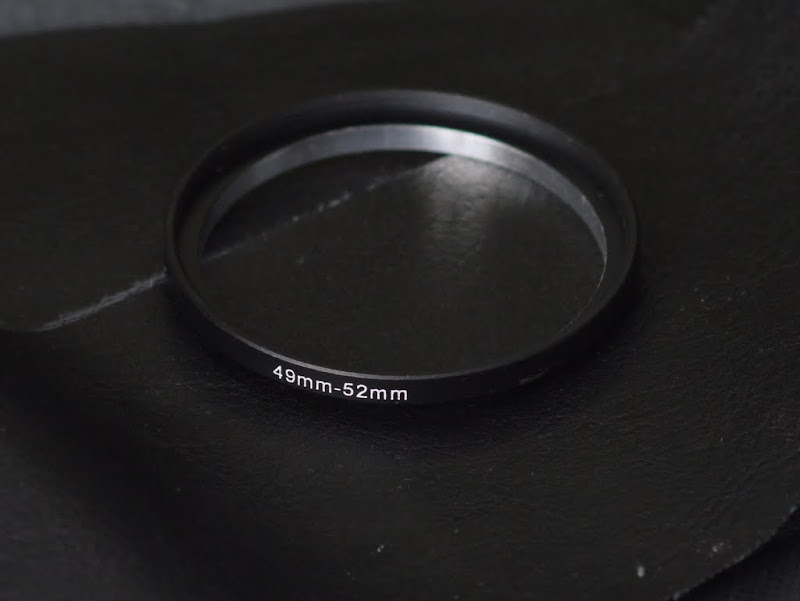

    49-52 step-up ring is almost perfect fit for the lens, but the inner diameter of ring is 46.0mm, and the outer diameter of the lens is 46.5mm, that I need to visit my mechanist to do some work.

    Lathe the inner diameter into 46.5, step-up ring is tightly fit on the lens. Inner circle is shinny silver due to the lathe work.

    And then I squeezed to fit the ring, no any glue needed, it is just so tight, you will need to use a philip screwdriver to take it off.

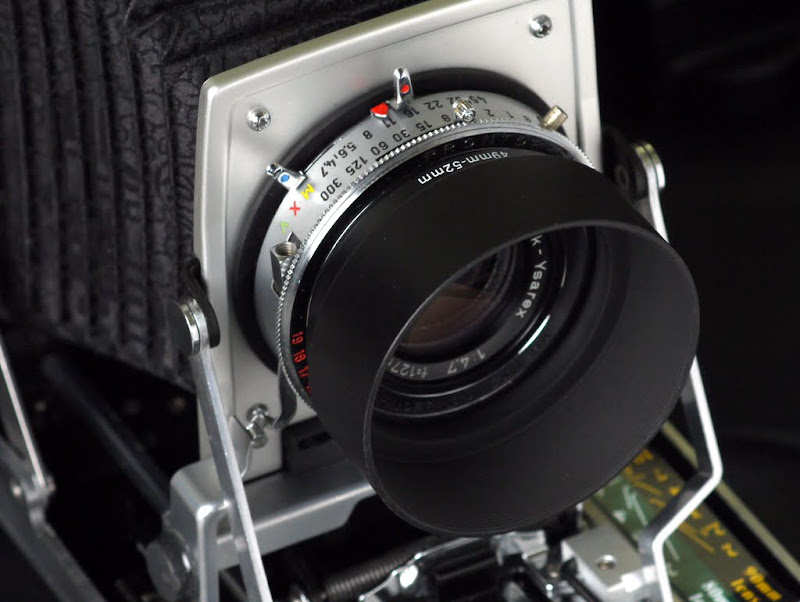

    It looks neat and pretty, with this ring we can install any 52mm filter on, and of course a 52mm lens shade. With ring on the lens, it safely stay in the camera body when fold.
    Another improvement is to unify distance scales.
    Byron is a conversion turning a fixed lens camera into an interchangeable lens system, besides one prime lens is range coupled with range finder, other lenses planning to use must have their distance scale for un-coupled focus.

    But Polaroid designed distance scale in a merely weired way, distance scale original on 110B is not engraved in between object and focal plane, which is a common way to do, instead, they measured distance between objects and lens. Two system differ on the length of camera body, that is about 8inches.

    For object locates far away, say 20feet, 8 inches makes no difference for both two scale, but if object is near, maybe 5feet away, then 8 inches means a big focus error.

    I was reminded by Raymond, a Byron client, he wrote me one day said that the distance scale is not right, I followed what told and found out the same situation. Then I finally found that all lenses I measured and set are based on focal plane, but distance scale on 110B is based on lens tip, that caused errors.

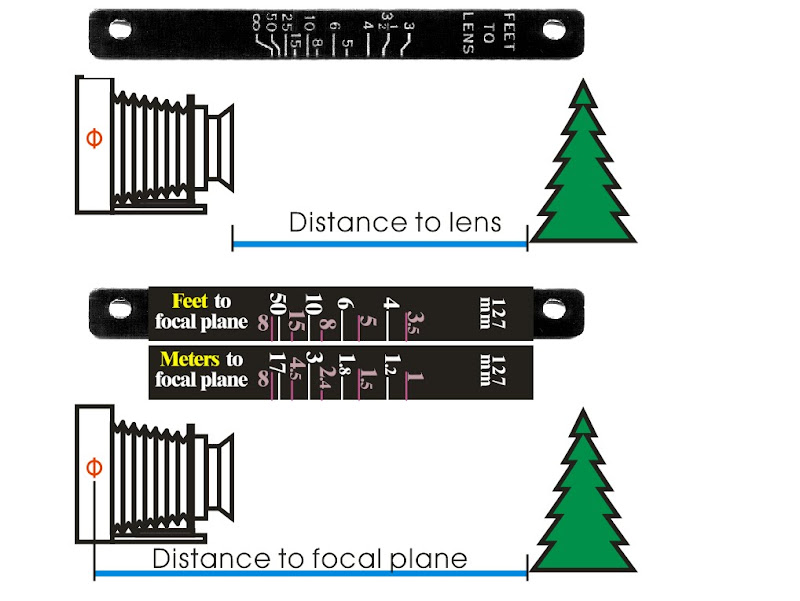

    So I redesigned the scale, remeasured and remarked it, image on top is what original distance scale shows and what it measured, below is what new scale shows and it measured.

    New scale has bigger numeric numbers, to help people like me, in the middle age, weak eye sighted. And by using colors to more clearly display.
    Not only scale in feet, also there is version in meter, reminded by a French client, some people get used to use metric system.
    Last edited by salihonba; 04-16-2010 at 06:44 AM. Click to view previous post history.

  5. #95

    Join Date
    Mar 2008
    Location
    Taiwan
    Shooter
    Large Format
    Posts
    115
    New distance scale compared with original ones, font size is bigger for reading, and in Imperial system as well as Metric system upon client's request.

    Revised in 4 versions, and re-arranged colors, font size and locations, distance scales are re-designed in whole new looks. Every version of output is different from what I saw on monitor, that took me many hours to adapt with, time wasted between output lab and my studio.

    Left two are from original, notice that one in meters, very very few, most 110B I encountered are in feet.
    Right four are covered by new distance scales, different scales for different prime lenses, they are more clear reading, and the scale is unified to focal plane, no more confused "Feet to lens".

    So do the un-coupled lenses, accompanied by distance scales engraved red line mark, and infinity stop engraves, Byron is capable of with 3 interchanging lenses.

  6. #96

    Join Date
    Mar 2008
    Location
    Taiwan
    Shooter
    Large Format
    Posts
    115




  7. #97

    Join Date
    Mar 2008
    Location
    Taiwan
    Shooter
    Large Format
    Posts
    115
    Rangefinder calibration / adjustment on Polaroid 110B

    Rangefinder camera needs calibration for some reasons, maybe caused by vibration, camera hit the ground, loosing screws...., anyway, if you found that the overlay images in viewing window mis-aligned or the photos are out of focus, it's time to check it out.

    There is not much information about 110B rangefinder calibration on internet, the best I can find is from Option8, master of Polaroid camera conversion/ modification.

    While Byron is a little bit different from other conversion, so it provides more options for rangefinder calibration, easier and faster to finish the job.

    In common case, calibration can be done by turning two screws on the back of mirror, that is...

    1. Focus at the infinity, then turn the screws, to align the overlay images in the view window,
    2. Then focus at something near, then turn the screws, to align the overlay images in the view window,
    3. Leave the focus between near and far to the cam curve.


    Two screws adjust mirror's horizontal/ vertical movements. as image below shows, upper left screw adjusts overlay image horizontal to move left (clockwise) or right (counter clockwise) direction; Lower right screw adjust overlay image vertical to move downward (clockwise) or upward direction (counter clockwise)

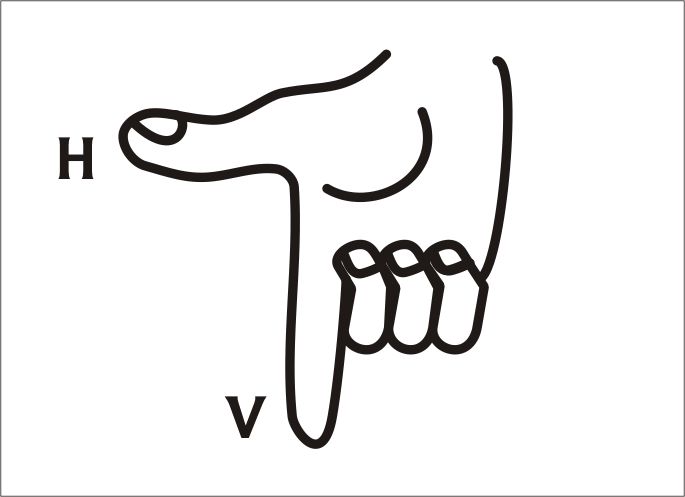

    It is not so easy to remember which turn to which direction, so I developed a 'Right Hand Rule' to help remembering it.


    When you adjust the overlay image, and don't remember which direction screw should turn, use your right hand like this, thumb represents horizontal screw, index finger represents vertical screw, and they are now showing the direction if you turn screws clockwise!

    Now back to the calibration procedure mentioned earlier, you see that no matter at infinity or at near object, only two screws available for adjustment. Isn't that funny if you align the image at infinity, then at near object requires adjustment too, won't it ruin the first alignment???

    In many forums discussing about RF adjustment, people always puzzled in this dead alley, aligned image at one end, but the other is not, and then back and forth, drives people crazy, still in dead alley.

    Actually there is another place to adjust the overlay image, it is the fixed screw in the middle, by loosing it a bit, you can make whole RF mechanical part turn, thus move the image horizontally, by tighten or loosing the screw, you can move the image vertically.


    So there are two sets of adjustment for overlay image alignment, with one set at infinity, and other set for near object focus, thus won't ruin the previous calibration.

    In theory this should satisfy all calibration required, but there is always exception. If you align both infinity and near end, but the adjustment always ruin the other one, no matter how you adjust, it just can't match both ends, in this case, it must be something wrong on cam.

    (to be continued....)
    Last edited by salihonba; 05-01-2010 at 07:38 PM. Click to view previous post history.

  8. #98

    Join Date
    Mar 2008
    Location
    Taiwan
    Shooter
    Large Format
    Posts
    115
    This situation happens when you use the wrong section of cam curve.

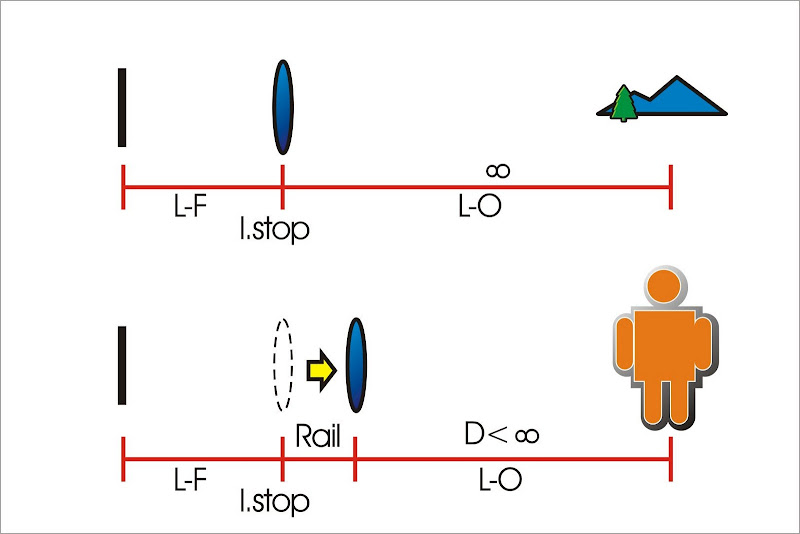

    If you ever read my post of lens curves, then you knew that the relationship of distance between 'lens to focused object' (L-O) and 'lens to focal plane' (L-F) never be a linear ratio. When focusing at infinity, we set the 'lens to focal plane' as ZERO point, the least length required to utilize this lens, and an 'infinity stop' is engraved on the plate, for quickly and precisely set lens on this position.


    When focus objects in distance less than infinity, rail moves and bellows extends to increase L-F distance to fulfill the requirement, as object get closer, extended distance increase more. that is, if object at about 10 meters away, maybe the L-F needs only 3mm increment, but when object at 2 meters away, increment increase to 18mm.

    That expained why cam curve designed to be a parabolic curve, and if you set the wrong section, all adjustments are in vain.


    Left on image shows the correct curve section on cam, infinity stop is aligned with the engraved line on cam, the ZERO point, and the curve section is match with the lens focus characteristic curve. But if the ZERO point is not aligned with the mark, then curve section must be shift, like what shows on right of image. Thus before you do any calibration, you should check if the infinity stop aligned with mark line or not.

  9. #99

    Join Date
    Mar 2008
    Location
    Taiwan
    Shooter
    Large Format
    Posts
    115
    Basic concept is clear, so we conclude the steps of calibration as following..

    1. Zeroing: set the lens to infinity, and make sure the mirror arm is attached with cam, on the mark line.
    2. Align overlay image at infinity object.
    3. Align overlay image at closer object.

    That are all steps we will follow, then here comes the detail...

    Settings

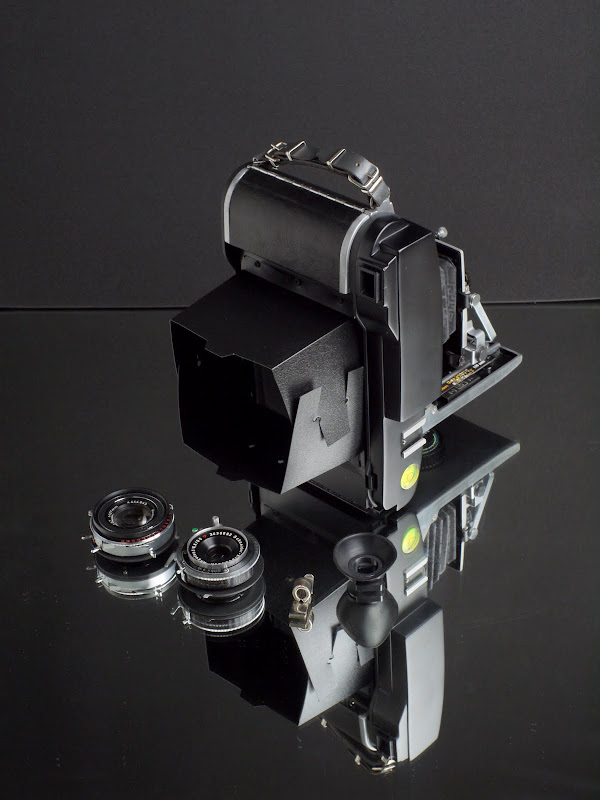

    1. Byron camera with prime lens, ground glass panel, magnifying loupe, tripod.

    2. Screw drivers, one tiny flat head, one normal philips head.

    3. A sunny day and clear view
    Choose a contrasty object as infinity target, like a high-voltage tower, about 2 km away from my house.

    4. A high contrast object for close focusing
    What I pick is a Big number calender panel. Hang it on wall, at the same height of the tripod, parallel with camera.

    Step 1. RF housing removal

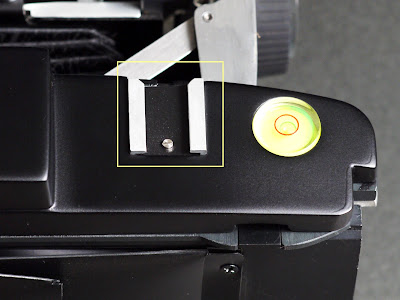

    * Byron uses two screws to hold the RF housing, one is beneath the cold shoe, you need to remove tiny screw on top, and peel apart the plastic sheet to reveal the screw.

    * Another one is in the side plate of film chamber, this screw need a long neck driver, or you can temporary take off the sliding tooth set for easier un-screwing.

    * Once two screws are removed, carefully take the housing off, and put it aside.

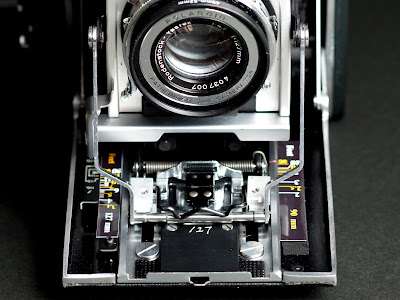

    * Now the RF mechanical parts are revealed, what we will adjust later are three parts, as explained at beginning, they are fixed screw, mirror, and lens cam (from left to right).

    Step 2. Zeroing
    Now we are going to calibrate infinity end, this is no extension for rail, so called zeroing.

    * Mount Byron onto the tripod, face the infinity object. (high voltage tower)
    * Mount on your prime lens, here is a Ysarex 4.7/127mm lens as example, if your prime lens is 150mm, mount it on.
    * Pull the front standard to the correspond infinity stop, engage the groove. Byron engraves lens length for each infinity stop, so it is easy to distinguish.

    * Set shutter to B, and with a cable release lock, make the lens shutter keep opening, and the aperture to full opening.
    * Make sure that rail is not extended, distance scale marked on infinity. You can check with loupe on ground glass panel.
    * Check lens cam, mirror arm should engage cam curve at the engraved line, adjust the cam by loosing locking screw if necessary.
    * View through the RF eye window, align the tower in the center, observe the overlaying image, do necessary adjustments, till images align with each other.
    * (In this step, we use two screws on mirror for adjustment)

    Step 3. Close distance calibration

    * After zeroing, turn camera to close distance object (calender), adjust camera distance to object about 4 feet, about the nearest distance the lens can focus.
    * with loupe and ground glass panel, turn the focus knob to focus the object, after focus is set, DO NOT TOUCH THE KNOB ANYMORE!
    * View through the RF eye window, align the object in center, observe the overlaying image, do necessary adjustments, till images align with each other.
    * (In this step, we use fixed screw for adjustment)

    Step 4. Re-check, further adjustment

    * Both infinity and close ends are calibrated, we re-check the result by turning back to face the infinity, to see if images in eye window keep align or not.
    * If overlay images keep align, then the calibration is done, and you can put back the RF housing.
    * If overlay images are not aligned with each other, then it may caused by wrong cam curve section. By loose the cam locking screw and turn the cam a bit, to make overlay images align again.
    * Repeat step 1~3, make necessary adjustments, till overlay images keep align on both end.

    These are steps for calibration, I hope this answer some questions concerning about the RF adjustments.

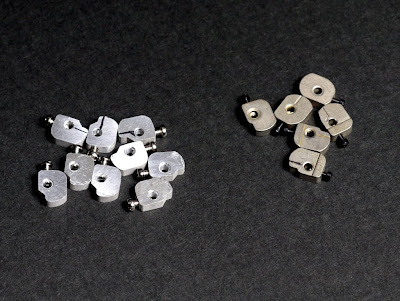

    And for Byron whose prime lens is set to 150mm, the original 127mm lens cam is replaced by custom made 150mm lens cam, they look alike, but curve is little bit different. (left: 150mm cam, right: 127mm cam)

    Sometimes new cam needs a little bit of filing to match the lens, because each lens got its own character! That belongs to advanced fine tuning...

  10. #100
    razzledog's Avatar
    Join Date
    Aug 2004
    Location
    Melbourne. Australia
    Shooter
    Multi Format
    Posts
    66
    Images
    6

    You have covered it well Daniel..

    This is a very informative way of explaining the adjustment and the operation of the Polaroid 110B/900 range finder.
    Well done mate. I will refer those in need of assistance to this thread from now on. It's great to see this sharing of information...thanks
