    Durst Laborator 1200 spare parts

    The focus extension of my new laborator is broken. It is just the plastic piece who joins the arm to the draft mechanism:

    (Internet image)

    Do you know where to find this piece?
    Any idea about How to fix this?

  2. #2
    paul_c5x4's Avatar
    Join Date
    Apr 2009
    Location
    Ye Olde England
    Shooter
    Large Format
    Posts
    1,445
    Images
    23
    You should be able to get a coupling like this:
    www.hpcgearsinternational.com/
    from an industrial bearing supplier or McMaster if you're in America.

  3. #3

    Join Date
    Feb 2007
    Shooter
    35mm
    Posts
    60
    Oh great!
    Thanks Paul

  4. #4

    Join Date
    Feb 2010
    Location
    Mundelein, IL
    Shooter
    35mm
    Posts
    992
    Images
    1
    Quote Originally Posted by paul_c5x4 View Post
    You should be able to get a coupling like this:
    www.hpcgearsinternational.com/
    from an industrial bearing supplier or McMaster if you're in America.
    Careful, the one you link to is only rated to 3000 RPM :-)

    Those Durst folks were so clever in their design, using parts engineered for other applications in innovative ways!

    Duncan

  5. #5

    Join Date
    Feb 2010
    Location
    Mundelein, IL
    Shooter
    35mm
    Posts
    992
    Images
    1

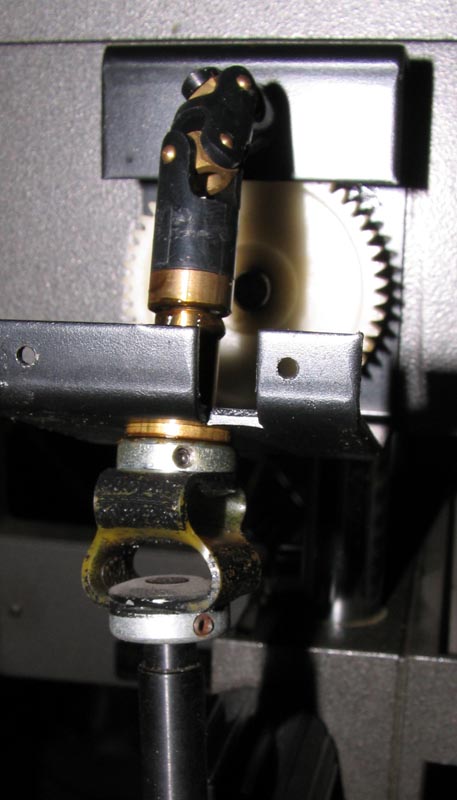

    OK, this intrigued me because I had just picked up a Laborator 1200 and was wondering how that coupling worked, so I dug into it a little more. To get proper access to remove it, you need to remove three phillips screws from the cover over the assembly. You'll discover the whole thing is way more complicated than it first appears - lots of little shafts and u-joints and things inside! Here is the mechanism:



    The coupling in question is at the bottom. Because the flex part is a brightly colored urethane, it looks like Durst spray-painted it black to keep reflections down. That can't be good for the longevity of that material! And as you can see, it eventually starts flaking off anyway.

    You'll need a 1.5mm hex key (Allen wrench) to loosen the pair of right-angle-to-each-other setscrews on each hub. Sorry, a 1/16" is just a shade too big, so US folks will have to go to the hardware store and pick up a 1.5mm wrench. (I got mine for 49 cents at Ace.) The original part on mine is a Paguag series 10 "Paguflex" coupling, with 6mm holes. See info here:

    http://www.wachendorff-automation.co...tml?view=print

    So the part number would be PF260606 from that source.

    Here in the US it's a little harder to come up with that brand, or even something with 6mm holes. McMaster-Carr has a very similar part but with 1/4" holes, which are about 1/64" too big. The setscrews should be able to take up that slack. Here is the order page:

    http://www.mcmaster.com/#double-loop-couplings/=6784em

    Order number is 6183K1 with 1/4" x 1/4" bores, a little over $12. I'm going to order one and see how bad that loose fit really is. I'll report back.

    Duncan
    Last edited by frobozz; 03-13-2010 at 09:15 AM. Click to view previous post history.

  6. #6

    Join Date
    Oct 2002
    Posts
    1,156
    I have the same problem....underneath the plastic sleeve that protects the "joint"...being tall, I am able to reach the enlarger housing in order to move the fine focus, but I look forward to seeing your fix.

  7. #7

    Join Date
    Feb 2007
    Shooter
    35mm
    Posts
    60
    All this information is awesome, far better than I expected.
    Thank you pals.

  8. #8

    Join Date
    Feb 2005
    Shooter
    8x10 Format
    Posts
    3

    Focus joint.....

    we have the brass type joint in stock in droves...which will replace the cheap plastic joint that was originally used for joining the focus extension, right diameter etc. $35 plus s/h.
    durst-pro-usa.com, email: durst-pro-usa@msn.com, 800 675 1493
