    Help with Time-O-Lite Timer

    I just bought a used Time-O-Lite model P-72.

    It works fine, but the Time Selector on the dial is incredibly, incredibly stiff to move. I wanted to remove the red pointer knob so I could try to loosen the time-selector. It appears that there are 2 tiny, tiny square head set screws holding the pointer knob in place, but I can not find a tool small enough to fit them.

    Does anyone know what I can use to get the pointer knob off? Or am I being too sophisticated and it's just supposed to pop off somehow? Any help would be immensely appreciated. Such a simple fix has gotten very frustrating, but I am determined to loosen the selector.

    Thanks so much!

  2. #2
    George Nova Scotia's Avatar
    Join Date
    Mar 2010
    Location
    Nova Scotia Canada
    Shooter
    Multi Format
    Posts
    444
    Images
    9
    I have a M-72 it takes a Bristol Spline, Xcelite 99-65 seems to fit just fine.

    http://www.cooperhandtools.com/brand...c=037103002907

    Note the top description of 6 flutes is wrong, Smaller sizes only have 4 flutes.

    Not the most common item.
    Last edited by George Nova Scotia; 04-22-2011 at 02:07 PM. Click to view previous post history.

  3. #3

    Join Date
    Feb 2009
    Shooter
    Large Format
    Posts
    662
    Unless the company has changed the setscrew specification, the hands of Time-O-Lite timers are secured with #6-32 setscrews with a 4-flute Bristol Drive socket.

    If you put a small Allen wrench into the socket youíll strip the socket and have a real mess.

    I think the wrench you need is S-069-4.

    http://fer3.com/arc/img/114042.spline.pdf

    I doubt that the pointer has anything to do with the problem. Thatís likely inside the mechanism. For that you need to contact the company for repair if available.

    http://www.industrialtimercompany.com/TOLTmrs.htm

  4. #4

    Join Date
    Mar 2011
    Shooter
    Medium Format
    Posts
    35
    Thanks for the suggestions on the Bristol wrenches.

    Ian, the pointer knob moves very smoothly, it's the time-selector that is stiff. I thought I could try to loosen the dial on the selector, but I'd need to remove the pointer first in order to do that. With such a mechanical system, I thought it would be a fairly DIY adjustment. If you've come across a similar problem and it had to be sent to ITC, I'd love to hear about it.

  5. #5
    Rick A's Avatar
    Join Date
    Mar 2009
    Location
    north central Pa
    Shooter
    Multi Format
    Posts
    5,860
    Images
    32
    I have a couple of those, and they are indeed stiff. I dont mind though, they are usually set and left where they are for the process I use them for.
    Rick A
    Argentum aevum

  6. #6
    Bill Burk's Avatar
    Join Date
    Feb 2010
    Shooter
    4x5 Format
    Posts
    3,199
    Images
    46

    How to turn Time-O-Lite Timer into an f/stop timer

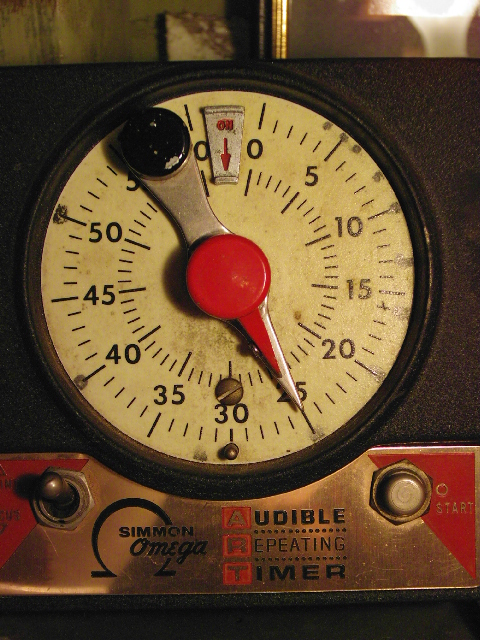

    I use an Omega-branded model and turned it into an f/stop timer...



    Each dot is 1/3 stop... In use I memorize the seconds between dots. In this example, 5, 4, 3, 3, 2. During exposure, I wait until I hear it clicking and then I do test strip series or burns and dodges in terms of the memorized clicks.

  7. #7
    Wade D's Avatar
    Join Date
    Feb 2006
    Location
    Jamul, CA
    Shooter
    Multi Format
    Posts
    881
    Images
    3
    Quote Originally Posted by Rick A View Post
    I have a couple of those, and they are indeed stiff. I dont mind though, they are usually set and left where they are for the process I use them for.
    I've never used one that's not stiff. Maybe they were designed that way to avoid accidental bumping.

  8. #8
    Rick A's Avatar
    Join Date
    Mar 2009
    Location
    north central Pa
    Shooter
    Multi Format
    Posts
    5,860
    Images
    32
    I think Wade's on to something. It is self resetting, so maybe its was designed to not knock itself from the settings on return.
    Rick A
    Argentum aevum

  9. #9
    markbarendt's Avatar
    Join Date
    May 2008
    Location
    Ignacio, CO, USA
    Shooter
    Multi Format
    Posts
    5,676
    Blog Entries
    3
    Images
    19
    Mine is stiff too, looking like that's the norm.
    Mark Barendt, Ignacio, CO

    "We do not see things the way they are. We see things the way we are." AnaÔs Nin

  10. #10

    Join Date
    Feb 2009
    Shooter
    Large Format
    Posts
    662
    I examined my P72. The dial requires a fairly strong push to set the pointer to the time wanted. I believe that this is simply part of the design and not a defect.

    There is nothing to be gained in removing the time-setting knob.

    The resistance you feel is from the mechanism inside the timerónot from the fit of the pointer assembly onto the two concentric shafts that connect to the timer mechanism.

    You might want to contact the maker for further clarification.
