    Stephen - it was a bad thread. Or at least bad to start it the way I did because it would confuse people. It was the first step in a broader analysis but on its own it was not good. The idea was to take a typical ZS-type test (ie in-camera instead of wedge/tablet, shooting a target tone), refine it somewhat to remove as many variables as possible and as much camera flare as possible, and try to create/isolate a subject flare factor. Part of the purpose there was to "prove" that with a uniform target the added flare density is constant regardless of exposure, which it did. But the problem is it quickly became obvious presenting this data in graphical format (a characteristic curve) is misleading because on its own it only shows flare exists (ie a parallel shift in the curve). It does not show the effect of flare when making a single exposure of a full scale subject. As the experimenter I understood this, but it was a confusing illustration. Showing parallel curves can give the impression the effect of flare is eliminated by simply reducing exposure - the very thing I was arguing against. So I figured it was better to get rid of it. The last thing we need on APUG is more confusion.

    But at least if nothing else it proved to me, with my own data, that flare density is constant in a typical ZS test, whatever the flare density is (if any), which was part of the purpose of this first step. The other interesting thing is it showed it is actually quite difficult to create a lot of flare in a test shooting a reflective target. With my limited indoor setup I was only able to get a 5 stop metered difference between white and black, and the amount of flare density was a little less than I had expected. Actually I didn't really know what to expect, but I got only 3 density points of subject flare density - although at the bottom of a H&D curve this could indeed be material.
    Last edited by Michael R 1974; 02-19-2013 at 07:52 AM. Click to view previous post history.

  2. #12
    Usagi's Avatar
    Join Date
    Apr 2007
    Location
    Turku, Finland. Northern Europe.
    Shooter
    Multi Format
    Posts
    360
    Images
    18
    Flare discussion seems to pop up quite often


    I have read a lot of Stephen's writings and perhaps understand something. Perhaps not all.



    Would the simpliest way to measure flare or get it's effect in the charts just expose two wedges. One without any optics (as contact print under the enlarger or using sensitometer) and another one by photographing wedge with normal coated lens.
    Then just compare results?

    If same exposure is done with couple of different lenses, it is easy to averaging flare.

  3. #13
    Bill Burk's Avatar
    Join Date
    Feb 2010
    Shooter
    4x5 Format
    Posts
    3,345
    Images
    46
    Well, I was thinking of shooting a flare test outdoors today but it's raining and I don't want to get the step tablets wet...

    I was looking forward to discussing subtle differences that different tests might reveal, for example...

    LP Clerc describes the difference of flare indoors versus outdoors. Indoors your subject lighted by photofloods is well lit but the surroundings are dark = less flare. Outdoors your subject is lit by sun, cloud or open sky... but the background may be bright open sky = more flare.

    With a lens shade and controlled lighting indoors, the flare would be "different" than it would be without a lens shade. Outdoors open sky will send many rays into the lens which aren't aimed directly at the film plane. Some of these rays will be scattered by the optics and camera internal reflections. Flare would illuminate the entire camera chamber.

    It wouldn't invalidate the test done indoors. Just that different scenarios would give different results, which is exactly the problem Flare poses.

  4. #14

    Join Date
    Feb 2010
    Location
    Montreal, Canada
    Shooter
    Multi Format
    Posts
    4,775
    Very true. In my indoor test I tried to maximize flare as much as I could by filling the frame with a white background, throwing as much light as possible at it and making the black "target" in the center as small as I could without making it difficult to read the density of it in the resulting negatives. As noted of course, using a reflection target in this way obviously limits the maximum difference in luminance between bright and dark. I better way indoors would be to have a brightly backlit target filling the frame, with an opaque dark patch in the middle. This would create more flare. It might better approximate the situations I'm often dealing with in my photography - predominantly dark subjects and/or night shots with lights in-frame.

    I have a question about your methodology. How would you fill the frame with your step tablet? This is a problem I struggle with in designing these sorts of tests.

  5. #15
    Bill Burk's Avatar
    Join Date
    Feb 2010
    Shooter
    4x5 Format
    Posts
    3,345
    Images
    46
    I would only work to make the step tablet patches about twice the aperture of my densitometer on the final film.

    Because I am encouraging flare, I wouldn't worry about maximizing the frame. Also, I am satisfied with only a subset of steps for a flare test. I was going to be doing a "typical scene" kind of test. (But now it's hailing).

    Backlighting a transparent test pattern is one good way to design a test that includes flare and also controls the lighting.

  6. #16

    Join Date
    Feb 2010
    Location
    Montreal, Canada
    Shooter
    Multi Format
    Posts
    4,775
    I initially wanted to do the test I outlined (and deleted) with a step tablet on my white and black frame-filling backgrounds - which is part 2 of my test. But the problem I keep running into is how to use my Stouffer reflection target and still get something that reproduces on the negative large enough to measure accurately with the densitometer. If I move the camera close enough to get that, I have to focus significantly closer than infinity to avoid blurring the tablet too much. But then lens extension becomes a variable. I wish I had some kind of bigger step tablet.

  7. #17
    Bill Burk's Avatar
    Join Date
    Feb 2010
    Shooter
    4x5 Format
    Posts
    3,345
    Images
    46
    Hey Michael R 1974!

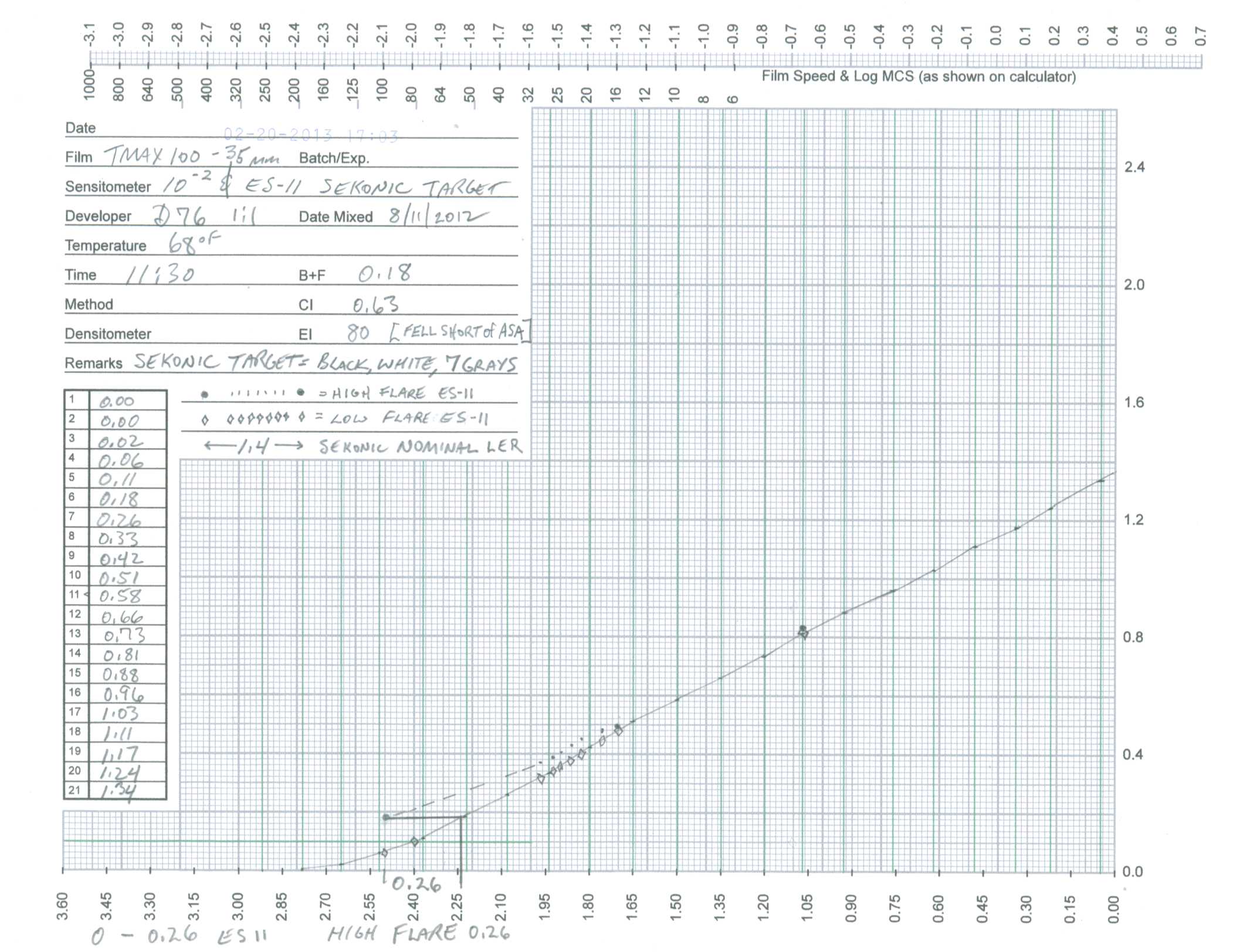

    It got sunny just long enough late afternoon for me to take some high flare and low flare shots. I added some sensitometry to the rolls for a baseline curve.

    Methodology: Sekonic test target with a black patch, white patch and 7 gray patches. The gray patches are centered on 18% (yes really). Total range is 1.4 log units, the gray patches are closely spaced. 100 TMAX 35mm in an ESII with 50 f/1.4 SMCT at f/5.6 for 1/125 sun facing camera (high flare), then another shot with sun facing target at f/16 for 1/250 (low flare).

    Results: Low flare so low it is not measurable. High flare is 0.26. Classic taper of flare curve to nominal curve.



    Another test using M2 with 50mm Summicron but with a UV filter that has significant cleaning marks... Difficult to measure because image was smaller on negative... Some abrasion marks interfered with high flare shot readings... Exposure error forced me to do some interpolation of my readings... Results of that test: Low flare 0.28 High flare 0.74. That test is not worth showing, but I think it helps validate the methodology.

  8. #18
    Stephen Benskin's Avatar
    Join Date
    Jan 2005
    Location
    Los Angeles
    Shooter
    4x5 Format
    Posts
    1,218
    Bill, what's the reflection density on the darkest patch?

  9. #19
    Bill Burk's Avatar
    Join Date
    Feb 2010
    Shooter
    4x5 Format
    Posts
    3,345
    Images
    46
    Patches are white = 90.7%, grays = 25.5%, 22.7%, 20.2%, 18%, 16%, 14.3%, 12.7% and black = 3.6%

    The low flare marks are all just marked on the curve at the densities they measure. They don't magically coincide with the curve. I expected LogE displacement from nominal, and there is some, but I was surprised how closely the marks fall in line. The reason I say I can't measure flare on the low flare exposure, is that it spans more than the nominal 1.4 on the LogE axis (gives me about -.02 flare which is illogical).

    I THINK the flare may be hiding. It is possible that in reality I get a higher real CI at the section of film with test targets. With measured CI 0.63 coming from a section of film near the end. If the local CI where the test target is shot is more than the measured CI 0.63, then the actual LogE span of the low flare target test COULD be less than 1.4 LogE. And THAT would be my real low flare measure. There's no missing the fact that the ESII has low flare, the density of 0.07 is not what you would get with my usually accepted flare factor of 0.4

    The high flare marks aligned at the high density so their Nominal LogE would be directly above each of the low flare marks. So I merely marked their actual densities.

  10. #20
    Stephen Benskin's Avatar
    Join Date
    Jan 2005
    Location
    Los Angeles
    Shooter
    4x5 Format
    Posts
    1,218
    Bill, one of the problems with evaluating flare is the determination of the shadow exposure which is a factor in determining the flare factor. In general flare for a highlight of 100% reflectance is about 1 to 3%. For a flare factor of 2 (1 stop), where will the value of flare equal the camera exposure without flare? Your target's black isn't dark enough. Here is the breakdown of the statistically average scene for a 125 speed film exposure.

    Click image for larger version.

Name:	Defining K, part 5d p2.jpg
Views:	9
Size:	222.9 KB
ID:	64531

    Shadow exposure 4 1/3 stops below metered exposure point is 0.6% reflectance. Your 3.6% is over two stops lighter. In this example, flare equals 0.0034 mcs. Added to the shadow exposure of 0.0034 and you've double the shadow exposure, but add it to the exposure of 0.0169 mcs at 3.2% reflectance and you get 0.0203 which is only a 20% increase.
